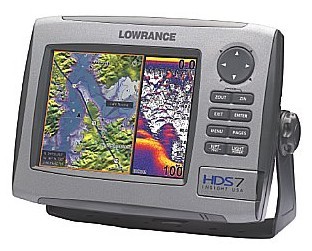

Lowrance HDS 7 GPS/海图/渔探/雷达四合一机
HDS高清亮系列 航海电子的新发明 特别适合中小型游艇、工作船和渔船使用
超强LED亮度,画面精细,无论是强烈阳光还是黑暗夜晚,优异的SolarMAX显示技术给您带来无与伦比
的视觉享受;内置Navionics全世界背景海图;内置革命性测深新技术Broadband模块,30W输出相当传统
3750W的探测效果;网络型50/200kHz(适合海水)或83/200 kHz(适合淡水)双频测深声纳;最新高接
收灵敏度的内置iGPS模块,真正的16通道的超强GPS接收性能;所有航迹与测深数据均可记录并选择回放;
NMEA2000配合以太网络结构,可组建全船多工作站系统;全中文化操作界面。
显示尺寸: 6.4寸高清晰彩色液晶
显示分辨率:480x640像素
峰峰功率:250W/30000W
输出功率:32W/3750W
探头频率:50/200kHz或83/200kHz
测深深度:1524米
水温/速度:有
工作电压:10-17V DC
天线:16通道内置GPS接收
内置地图:世界海图
自制地图:是
转向点:5000
航路:200
声纳/航迹记录:有
雷达:可接2KW、4KW、BR24连续波调频雷达
数据通讯:NMEA2000/0183
语言:中、日、韩、英多种语言
DISPLAY
Display Size 6.4 in \ 163 mm
Display Resolution 480 x 640 (H x W)
Display Type 16-bit color Full VGA SolarMAX™ PLUS TFT
Backlighting Screen/Keypad
Backlighting Type Pure white LED
Resize Display Window Yes
Sonar And GPS Overlay Data Yes
Split Screen Presentation Yes
Multilanguage Display Yes
Languages Supported 23
SONAR / SOUNDER
Sonar Frequency 50/200 or 83/200 kHz
Transducer Type Choice of dual frequency Skimmer®
Sonar Output Power Max 250W Peak to Peak (31W RMS) actual; 30,000W Peak to Peak analog
equivalent W
Sonar Depth Max 5000 ft \ 1524 m
Standard Fishfinder Features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™,
and more Yes
FlashGraf™ Yes
FasTrack™ Yes
Ping Speed HyperScroll™ Yes
Sonar Alarms: Fish, Max and Min Depth Yes
Depth Alarm Yes
Shallow Alarm Yes
Temperature Display Yes
GPS / NAVIGATION
GPS Antenna Type Internal, high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas)
GPS Receiver Channels 16 channels
Background Map Expanded U.S. BaseMap or Insight USA™ (Americas) or Worldwide background map
(non-Americas)
Custom Mapping Optional Navionics® Platinum+ and Platinum chartcards with TurboView™ for worldwide
coverage - as
well as Navionics® HotMaps™ Platinum, Lowrance Hot Spots® PRO and LakeMaster® ProMaps (Americas)
Waypoint Storage 5000
Routes 200
Plot Trails Up to 10 trails - up to 12,000 points/trail
Man Overboard Feature Yes
GPS Alarms Yes
RADAR
Antenna Type Optional Lowrance radar choices available
NETWORKING / CONNECTORS
NMEA 0183 Input Yes
NMEA 0183 Interface up to 38,400 baud
NMEA 2000 Pending Certification Yes
NMEA Output 0183/2000
Connectors NMEA 2000®, NMEA 0183 and Ethernet
TECHNICAL / ENVIRONMENTAL
Built-in Backup Memory Yes
Casing Sealed and waterproof
Waterproof Standard IPX6 and IPX7 with memory card door closed
Width 8.8 in \ 224 mm
Height 6.4 in \ 163 mm
Depth 3.5 in \ 88 mm
POWER
Power Supply 10 - 18 vDC
Power Supply: Input Current 0.8A at 13VDC with backlight on, 0.4A with backlight off
OTHER
Alarms Local and networked alarms available for included and optional components, ncluding sonar,
GPS/navigation, battery voltage, weather, engine/transmission, tank level, AIS and DSC
List of Specified Standards EMC: IC RSS-310; FCC Part 15 Class B; IEC60945
Memory Card Capable One SD/MMC/MMC+ memory card slot
Operating Temperature -15°C to 55°C (5°F to 130°F)
Other Features Broadband Sounder technology, ethernet networking, optional SIRIUS Satellite Weather/
Radio, and new 2-year limited warranty
