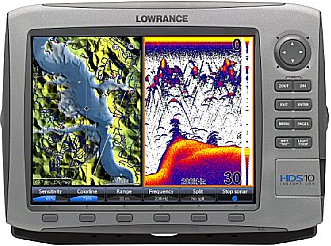

Lowrance HDS 10 GPS/海图/渔探/雷达四合一机
HDS高清亮系列 航海电子的新发明 特别适合中小型游艇、工作船和渔船使用<BR>超强LED亮度，
画面精细，无论是强烈阳光还是黑暗夜晚，优异的SolarMAX显示技术给您带来无与伦比的视觉享受；
内置Navionics全世界背景海图；内置革命性测深新技术Broadband模块，30W输出相当传统3750W的
探测效果；网络型50/200kHz（适合海水）或83/200 kHz（适合淡水）双频测深声纳；最新高接收灵
敏度的内置iGPS模块，真正的16通道的超强GPS接收性能；所有航迹与测深数据均可记录并选择回放；
NMEA2000配合以太网络结构，可组建全船多工作站系统；全中文化操作界面。
技术参数：
显示尺寸： 10.4寸高清晰彩色液晶
显示分辨率：600x800像素
峰峰功率：250W/30000W
输出功率：32W/3750W
探头频率：50/200kHz或83/200kHz
测深深度：1524米
水温/速度：有
工作电压：10-17V DC
天线：16通道内置GPS接收
内置地图：世界海图
自制地图：是
转向点：5000
航路：200
声纳/航迹记录：有
雷达：可接2KW、4KW、BR24连续波调频雷达
数据通讯：NMEA2000/0183
语言：中、日、韩、英多种语言
特别说明：根据客户需要配置不同，产品单价不同。
|
DISPLAY Display Size 10.4 in \ 264 mm Display Resolution 600 x 800 (H x W) Display Type 16-bit color Super VGA SolarMAX™ PLUS TFT Backlighting Screen/Keypad Backlighting Type Pure white LED Resize Display Window Yes Sonar And GPS Overlay Data Yes Split Screen Presentation Yes Multilanguage Display Yes Languages Supported 23 SONAR / SOUNDER Sonar Frequency 50/200 or 83/200 kHz Transducer Type Choice of dual frequency Skimmer® Sonar Output Power Max 250W/32W RMS actual; 30,000/3,750 RMS analog equivalent W Sonar Depth Max 5000 ft \ 1524 m Standard Fishfinder Features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more Yes FlashGraf™ Yes FasTrack™ Yes Ping Speed HyperScroll™ Yes Sonar Alarms: Fish, Max and Min Depth Yes Temperature Display Yes GPS / NAVIGATION GPS Antenna Type Internal, high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas) GPS Receiver Channels 16 channels Background Map Expanded U.S. BaseMap or Insight USA™ (Americas) or Worldwide background map (non-Americas) Custom Mapping Optional Navionics® Platinum+ and Platinum chartcards with TurboView™ for worldwide coverage - as well as Navionics® HotMaps™ Platinum, Lowrance Hot Spots® PRO and LakeMaster® ProMaps (Americas) Waypoint Storage 5000Routes 200 Plot Trails Up to 10 trails - up to 12,000 points/trail Man Overboard Feature Yes RADAR Antenna Type Optional Lowrance radar choices available NETWORKING / CONNECTORS NMEA 0183 Input Yes NMEA 2000 Pending Certification Yes NMEA Output 0183/2000 Connectors NMEA 2000®, NMEA 0183 and Ethernet TECHNICAL / ENVIRONMENTAL Built-in Backup Memory Yes Casing Sealed and waterproof Width 12.3 in \ 312 mm Height 8.9 in \ 225 mm Depth 3.6 in \ 92 mm POWER Power Supply 10 - 17 vDC OTHER Memory Card Capable Two SD/MMC memory card slots Other Features Broadband Sounder technology, ethernet networking, optional SIRIUS Satellite Weather/Radio, FlyWheel™ scroll dial and new 2-year limited warranty |
