雷松/安修士 ：STD-22 正品 德国安修斯Raytheon Anschutz Standard 22船用电罗经STD-22
【产品简介】
安修斯22型电罗经的换代产品，满足IMO电罗经设备的性能标准，CCS证书。
1: 静态精度：≤±0.1°x seclat.
2: 动态精度：≤±0.4°x seclat.
3: 稳定时间：3h
4: 跟踪速度：75°/S
5: 最大允许倾斜度：±45°
6: 输出标准NMEA 0183 数据
欢迎您来电15063061695咨询

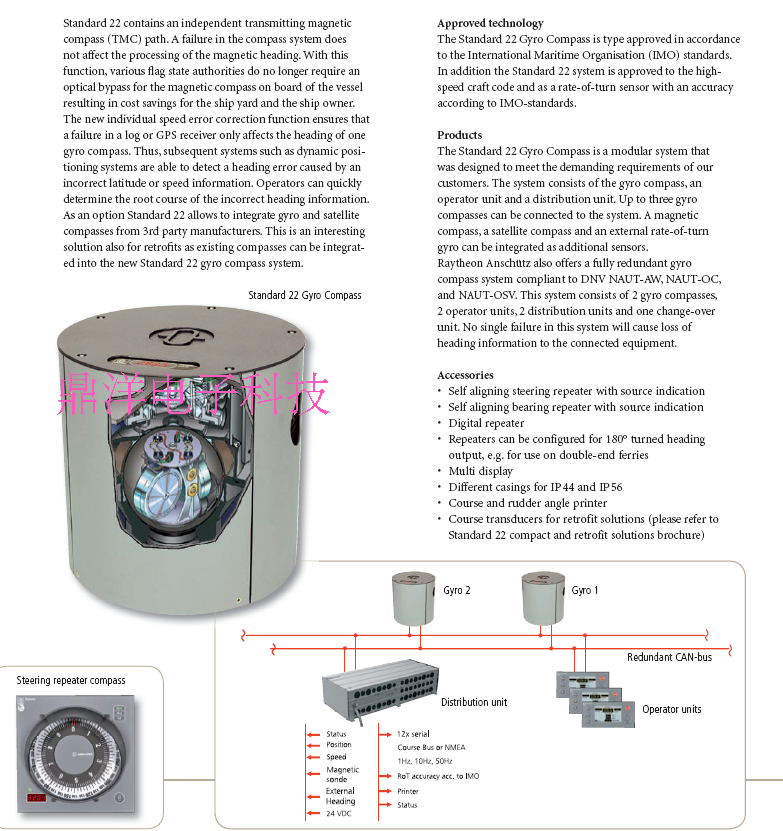

For Standard 22 retrofit solutions Raytheon Anschütz offers a series of universal course converters: serial/360° synchro converter, serial/universal synchro converter and serial/universal step converter (for more information, please visit “Configurations” or download the brochure).
These converters enable to retain existing equipment and can be used to replace virtually all available gyro compasses in the market. Outstanding benefits of Standard 22 hold true for this retrofit solution.
【Facts & Features】
---Standard 22 and converters are IMO, wheelmark and high-speed craft certified
---Cost-efficient replacement of any old gyro compass
---Existing equipment and cabling can be used
---Reduced installation time and effort
---Very cost efficient retrofit solution for ship owner
---Perfect solution for service organisations – nearly all available compasses in the market can be retrofit with only two different converters
---Low lifecycle costs due to maximum performance, reliability and long maintenance intervals.
---High accuracy of 0.1 degrees
---Automatic speed / latitude error correction and a dynamic error correction
---Quick settling mode (option)
---Wide range of accessories
---Short installation time and long maintenance periods
---IMO approved including high-speed craft (HSC)
---Very attractive for retrofits (easy installation using universal course converter)

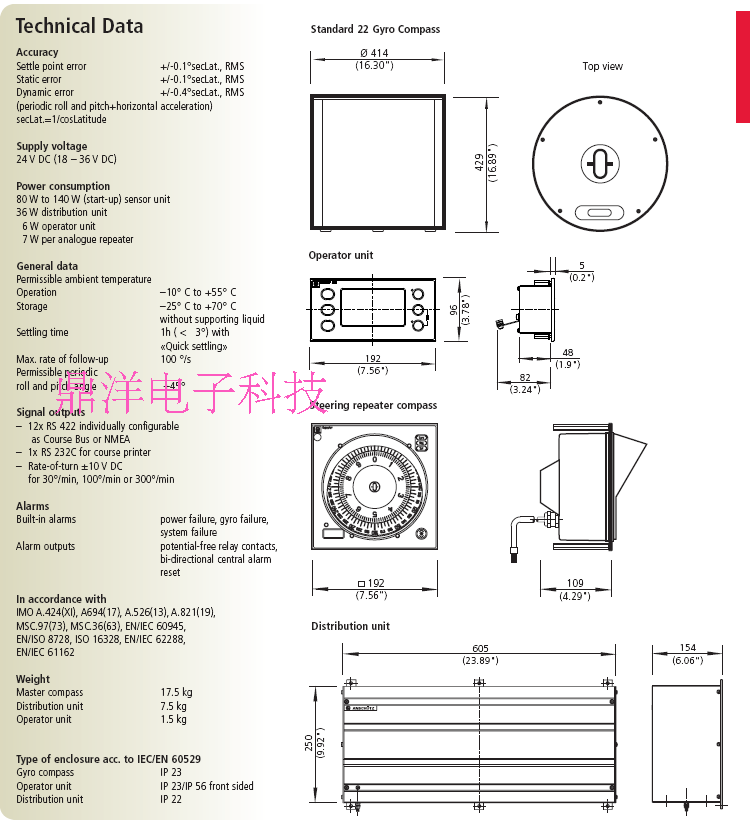

| General | ||
| Accuracy |
Settle point error ： +/-0.1°secLat., RMS
Static error ： +/-0.1°secLat., RMS
Dynamic error ： +/-0.4°secLat., RMS
(periodic roll and pitch+horizontal acceleration)
secLat.=1/cosLatitude |
|
| Supply voltage | 24 V DC (18 – 36 V DC) | |
| Power consumption |
80 W to 140 W (start-up) sensor unit
36 W distribution unit
6 W operator unit
7 W per analogue repeater
|
|
| General data |
Permissible ambient temperature
Operation ： –10° C to +55° C
Storage：–25° C to +70° C
without supporting liquid
Settling time ：1h ( < 3°) with «Quick settling»
Max. rate of follow-up ：100 °/s
Permissible periodic
roll and pitch angle ： ±45° |
|
| Signal outputs |
– 12x RS 422 individually configurable
as Course Bus or NMEA
– 1x RS 232C for course printer
– Rate-of-turn ±10 V DC
for 30° /min, 100° /min or 300°/min |
|
| Alarms |
Built-in alarms ：power failure, gyro failure,
system failure
Alarm outputs ：potential-free relay contacts,
bi-directional central alarm reset |
|
| In accordance with |
IMO A.424(XI), A694(17), A.526(13), A.821(19), MSC.97(73), MSC.36(63), EN/IEC 60945, EN/ISO 8728, ISO 16328, EN/IEC 62288, EN/IEC 61162 |
|
| Weight |
Master compass ：17.5 kg
Distribution unit ：7.5 kg
Operator unit ：1.5 kg
|
|
|
Type of enclosure acc.
to IEC/EN 60529
|
Gyro compass：IP 23
Operator unit ：IP 23 / IP 56 front sided
Distribution unit ：IP 22
|
|
【Configuration】
The following course converters are offered for individual retrofit solutions:
-
Serial/360° Synchro Converter
The serial/360° synchro converter converts serial heading information (NMEA or course bus) into a coarse synchro output (360°, compatible to 11 CX synchro) and can be used to connect NautoCourse® or old autopilots to new compasses. -
Serial/Universal Synchro Converter
The serial/universal synchro converter converts serial heading information (NMEA or course bus) into various synchro signals. It is used when an old gyro compass with synchro output is replaced with a new Standard 22 to keep the existing equipment with synchro input. -
Serial/Universal Step Converter
The serial/universal step converter converts serial heading information (NMEA or course bus) into step (6step / degree) signals. It is used when an old gyro compass with step output is replaced with a new Standard 22 to keep the existing equipment with step input. It can be alternatively used as a step booster.Course Converter for Standard 22 Retrofit Solution
